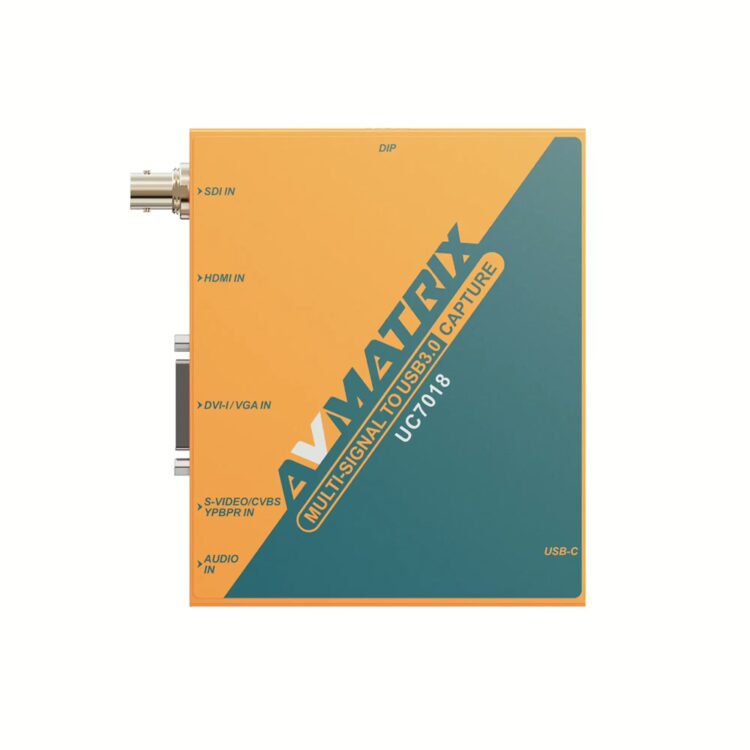

UC7018 MULTI-SIGNAL TO USB3.0 CAPTURE

د.إ 1,370

Excl. VAT · calculated at checkout

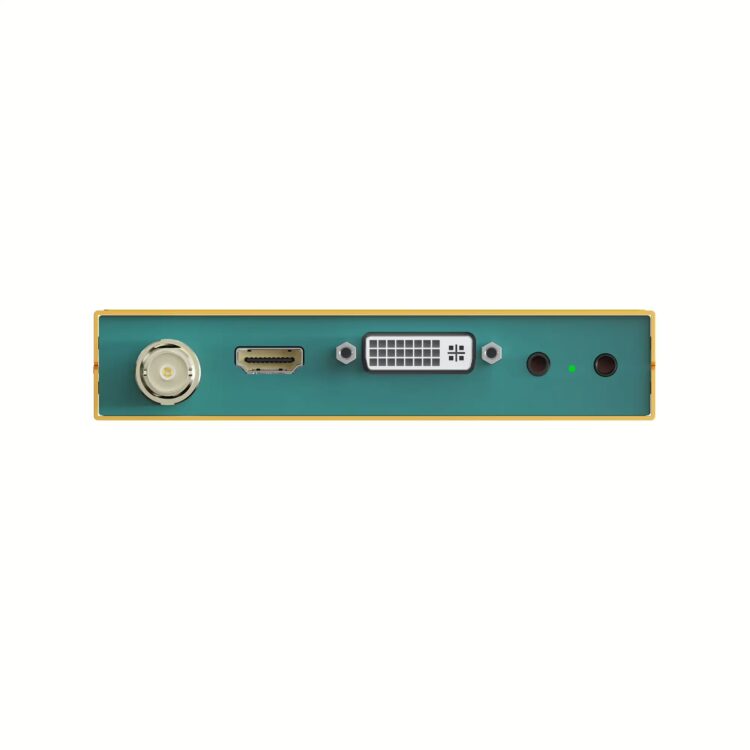

- Input: SDI/HDMI/DVI-I/VGA/CVBS/S-VIDEO/YPbPr input, analog audio input
- Output: USB 3.1 Gen1 (USB3.0) output
- Automatic input signal detection up to 1080p60
- Plug and play, no driver or power supply required
- Uncompressed audio and video capture, UVC and UAC compliant, supports RGB, YUY2, NV12
- With video and power signal LED indicators
- USB Type-C for capture, power and upgrades

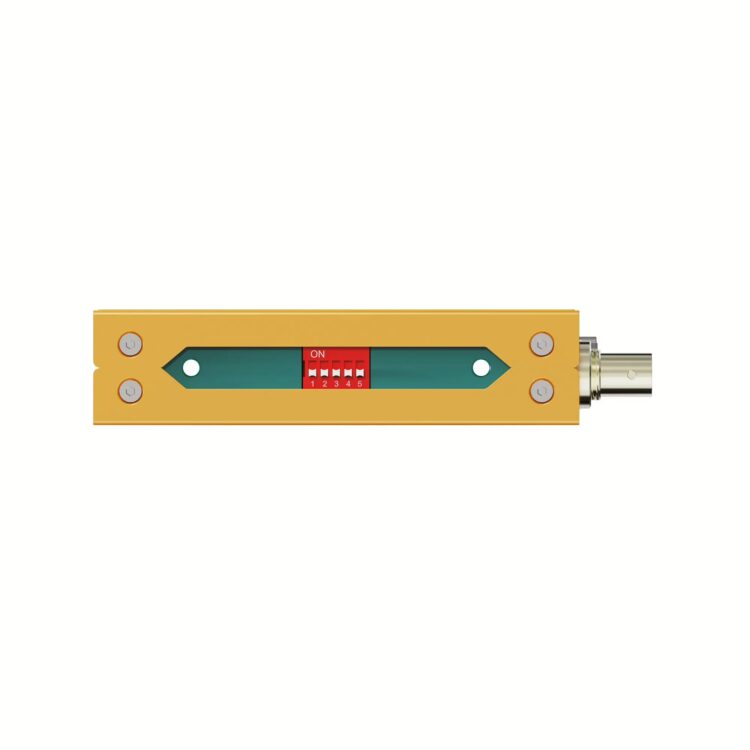

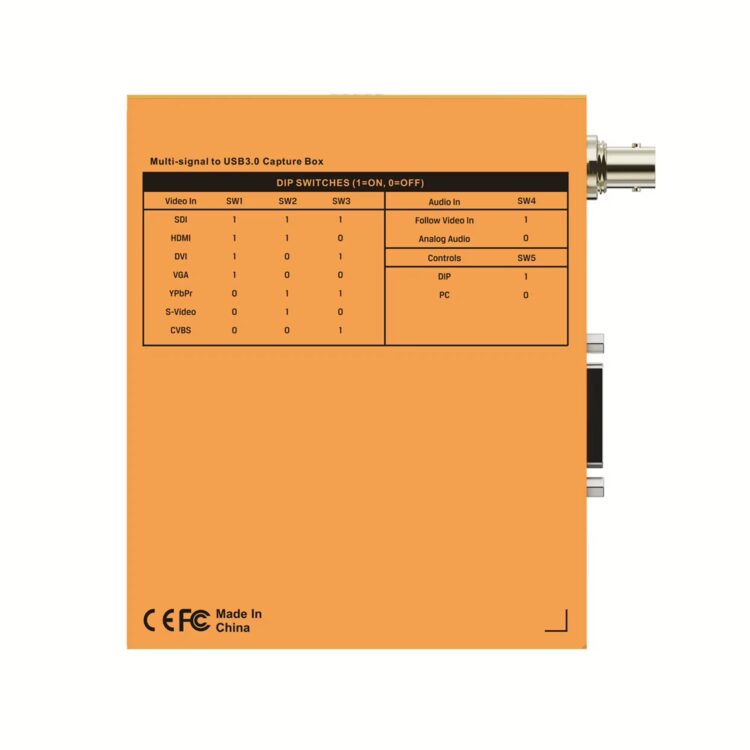

- Easily controlled by dip switches and PC software
- Compatible with Windows, Linux and MacOS.
- Compatible with OBS, ZOOM, Teams, Twitch, Vmix and other live streaming softwares

Input: SDI/HDMI/DVI-I/VGA/CVBS/S-VIDEO/YPbPr input, analog audio input
Output: USB 3.1 Gen1 (USB3.0) output
Automatic input signal detection up to 1080p60
Plug and play, no driver or power supply required
Uncompressed audio and video capture, UVC and UAC compliant, supports RGB, YUY2, NV12
With video and power signal LED indicators
USB Type-C for capture, power and upgrades
Easily controlled by dip switches and PC software

Select Accessories

SC7030 MULTI-SIGNAL TO SDI /HDMI CROSS CONVERTERد.إ 1,245SDI/HDMI/DVI-I/VGA/CVBS/S-video/YPbPr inputs SDI out×2, HDMI out×1 Up/down scaling and frame rate c…Details

SC1221-12G-HDMI2.0 to 12G-SDI Converterد.إ 8304K HDMI to 12G-SDI Convert & Split 4K HDMI Loop-out Up to 4K60 resolution USB Type-C Power …Details

SHARK S6 PLUS -17.3″ 6CH SDI/ HDMI Portable Video Switcherد.إ 6,50017.3-inch built-in display, portable 6-channel switcher4×3G-SDI + 2×SDI/4K HDMI inputsMulti-view output f…Details

SHARK S8X - 8CH SDI/ HDMI Video Switcherد.إ 7,5008-channel video switcher: 6×3G-SDI + 2×SDI/4K HDMI1×BNC REF input and 1×AUX outputProfessional-grade tr…Details

★Official AVMATRIX Middle East Distributor✓Genuine product⚡Delivery: 2-4 days UAE / 2-5 days Saudi⚿Secure payment · Apple Pay & card☎Regional support

SKU UC7018 Category USB/PCIE Capture Tags capture card, hdmi, hdmi capture, pcie capture, sdi, sdi capture, sdi-hdmi, usb, usb capture, video capture, video switcher Brand: AVMATRIX

Description

UC7018

MULTI-SIGNAL TO USB3.0 CAPTURE

Input: SDI/HDMI/DVI-I/VGA/CVBS/S-VIDEO/YPbPr input, analog audio input
Output: USB 3.1 Gen1 (USB3.0) output
Automatic input signal detection up to 1080p60
Plug and play, no driver or power supply required
Uncompressed audio and video capture, UVC and UAC compliant, supports RGB, YUY2, NV12
With video and power signal LED indicators
USB Type-C for capture, power and upgrades
Easily controlled by dip switches and PC software
Compatible with Windows, Linux and MacOS.
Compatible with OBS, ZOOM, Teams, Twitch, Vmix and other live streaming softwares

FAQ

Is it compatible with my software?

Capture devices appear as a standard UVC source and work with OBS, Zoom, Teams, vMix, and most streaming and conferencing software.

What operating systems are supported?

USB models are plug and play on Windows and macOS; PCIe cards target Windows workstations.

What resolution can it capture?

Depending on the model, capture supports up to 4K, with multi-channel SDI capture on PCIe cards.

Is this a genuine product with warranty?

Yes. Minar Media Systems is the official AVMATRIX Middle East distributor. Every unit is brand-new, genuine, and covered by local warranty and support.

Do you ship across the UAE and the GCC?

Yes. We ship across the UAE and the wider Middle East, with free delivery on orders over AED 300. Prices are shown excluding VAT, which is calculated at checkout based on your location.

Can your team help with setup or integration?

Yes. Our technical team can advise on system design, compatibility, and integration for studios, broadcast, and live production. Contact sales@minarsystems.com.
