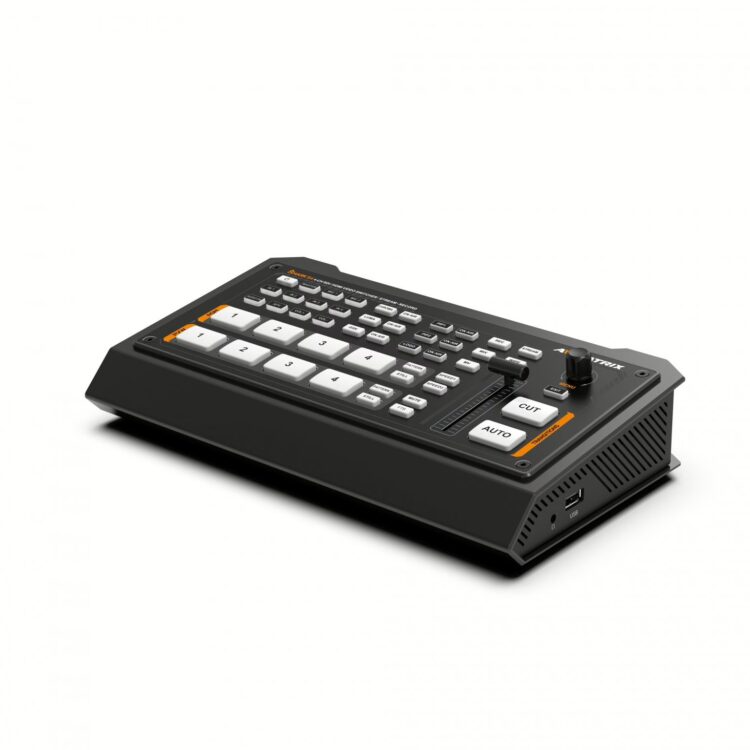

SHARK S4 4-CH SDI/HDMI VIDEO SWITCHER

Four cameras, one live show

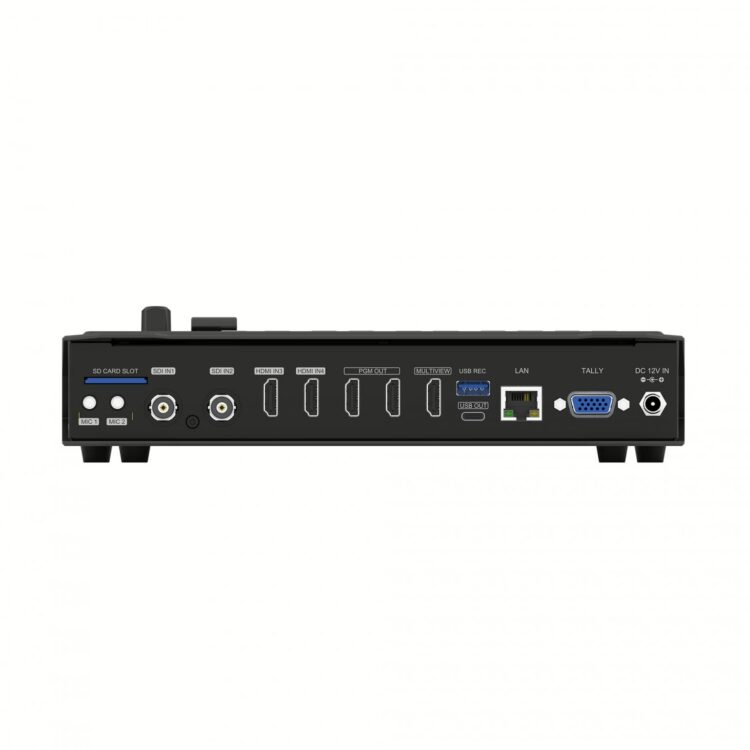

The SHARK S4 mixes 2×HDMI and 2×3G-SDI sources (auto-detected) into a polished live program — ideal for worship, education, sports and corporate streams. Program goes out over 2×HDMI plus a dedicated HDMI multiview so you always see every input at a glance.

Stream and record anywhere

Go live directly to any RTMP or SRT platform, capture to a USB drive or SD card at the same time, and use the USB Type-C output for clean capture and streaming straight into your computer — no extra capture card needed.

Broadcast-grade keying and effects

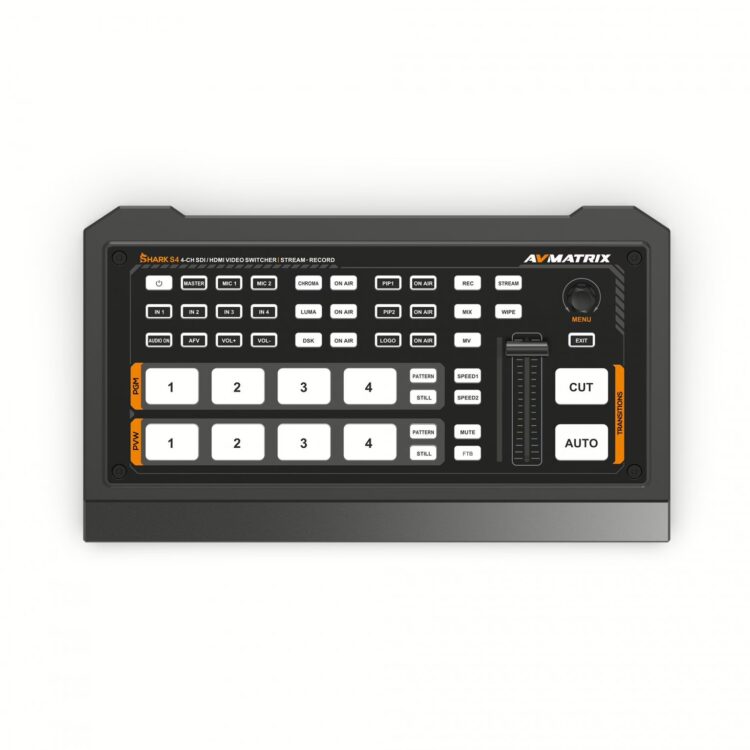

Build professional looks with upstream Luma and Chroma keying, dual PIP and POP, a downstream key and LOGO overlay. Switch with T-bar, Auto or Cut and add WIPE, MIX or DIP transitions for a truly live feel.

Full audio in the mix

An onboard audio mixer handles 2×HDMI and 2×SDI embedded audio plus 2-channel MIC/line input, with audio delay to keep sound perfectly in sync with the picture.

Ready for real productions

A built-in media library (39 patterns, imported and captured stills, colour generators), import/export of your custom configuration, and FTB, MUTE, STILL and GPIO tally make the SHARK S4 a dependable core for any live setup.
