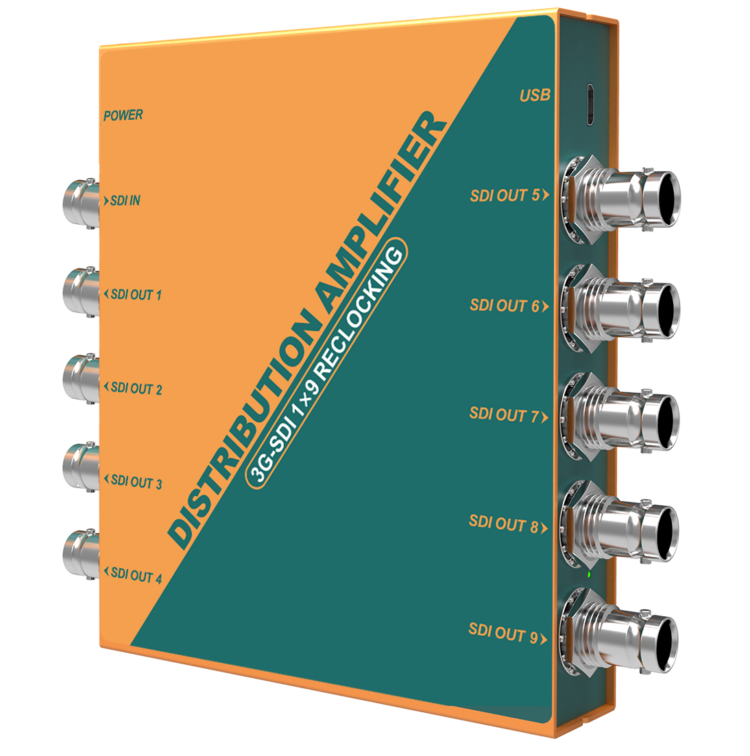

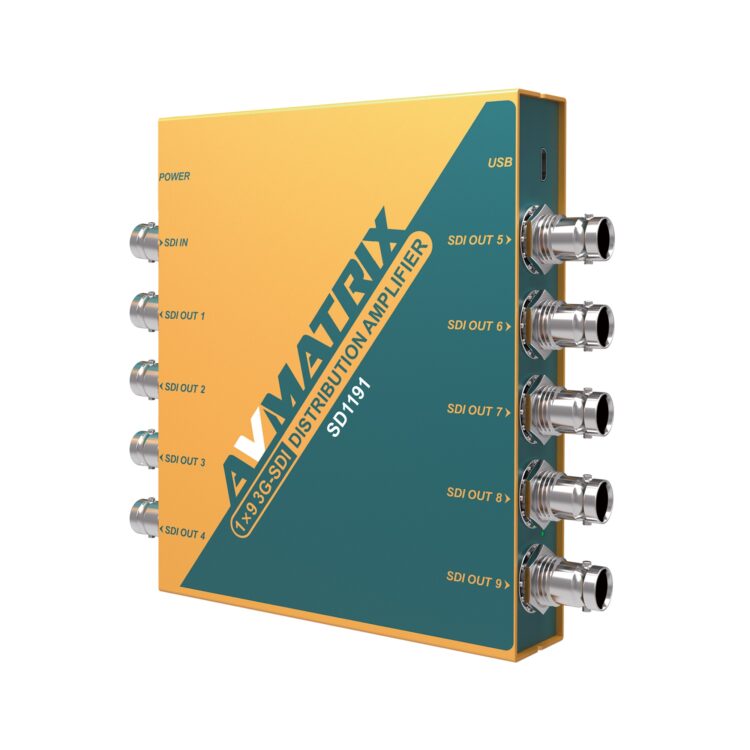

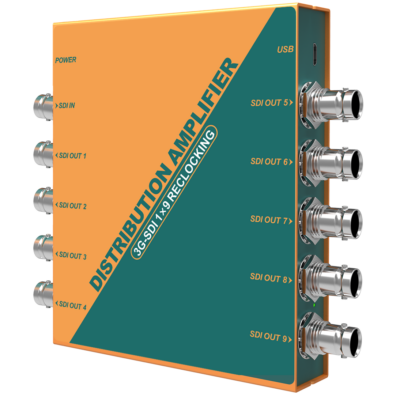

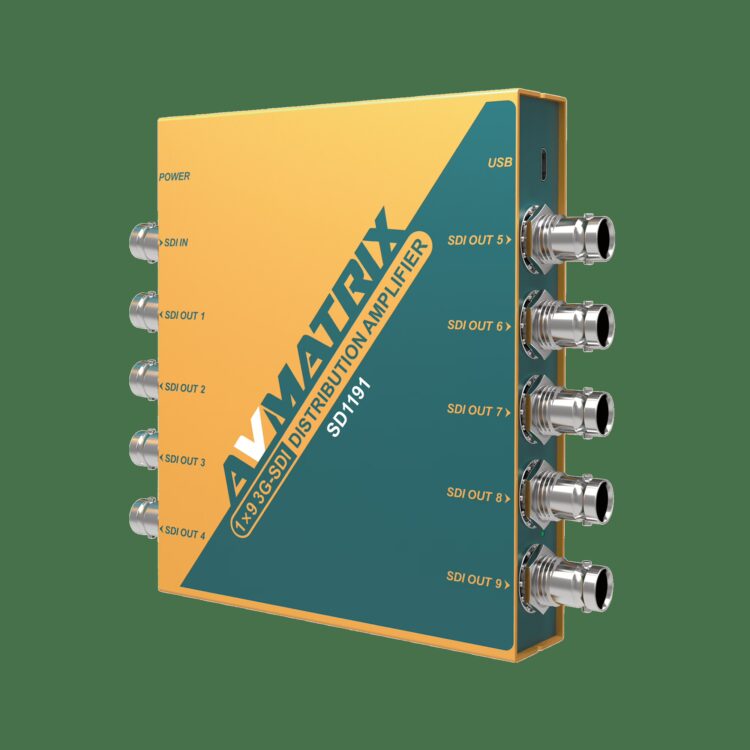

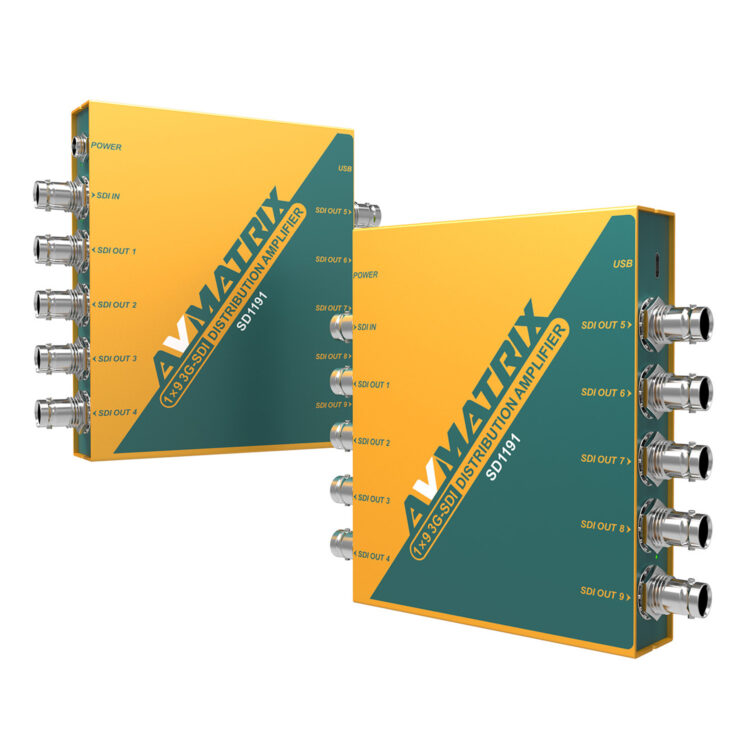

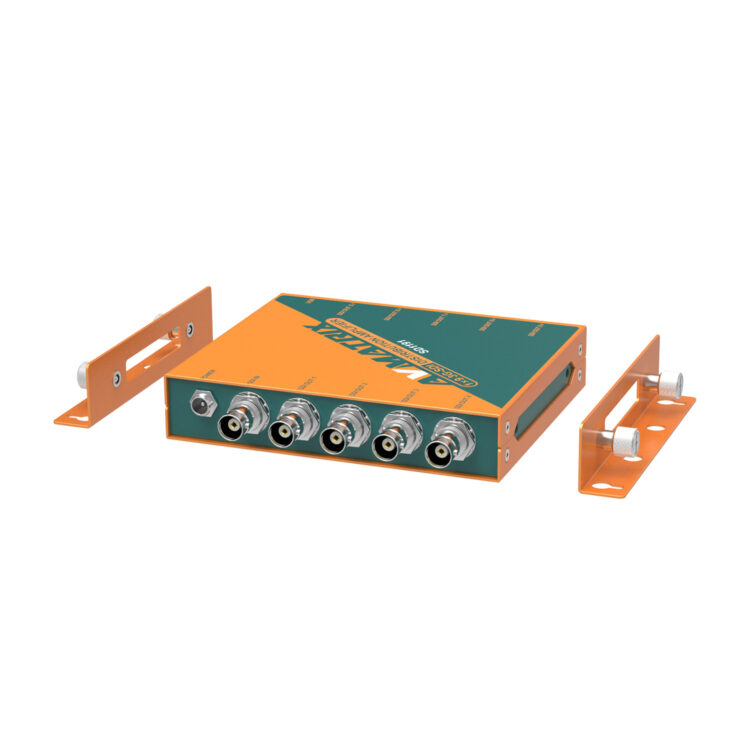

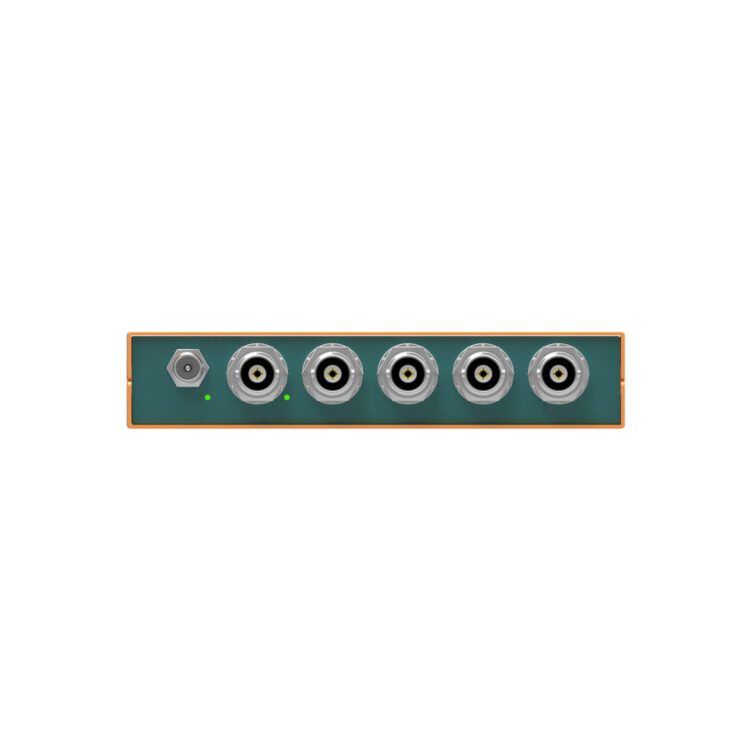

SD1191 1×9 SDI Reclocking Distribution Amplifier – Ver A

Description

The SD1191 is a miniature 1×9 3G/HD/SD-SDI re-clocking distribution amplifier designed for broadcast and professional AV environments. It accepts a single SDI input and distributes the signal to nine independently buffered outputs, making it ideal for large-scale production facilities, broadcast trucks, and live event setups where multiple destinations need to receive the same high-quality SDI feed.

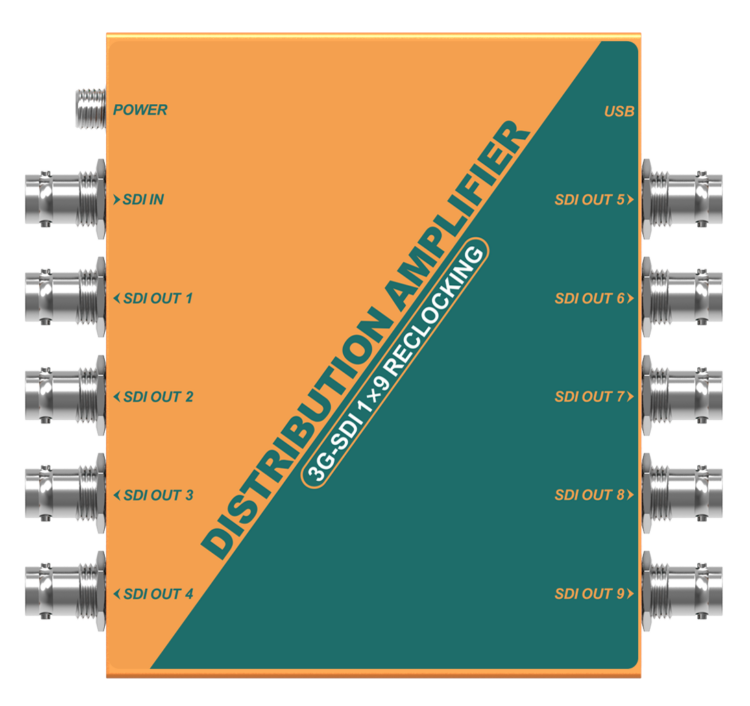

• 1×SDI input, 9×SDI outputs with independent re-clocking
• Supports 3G/HD/SD-SDI multi-rate signal processing
• Compact DIN-rail mountable form factor
• Low power consumption with stable signal integrity
• Suitable for broadcast studios, OB vans, and live production
