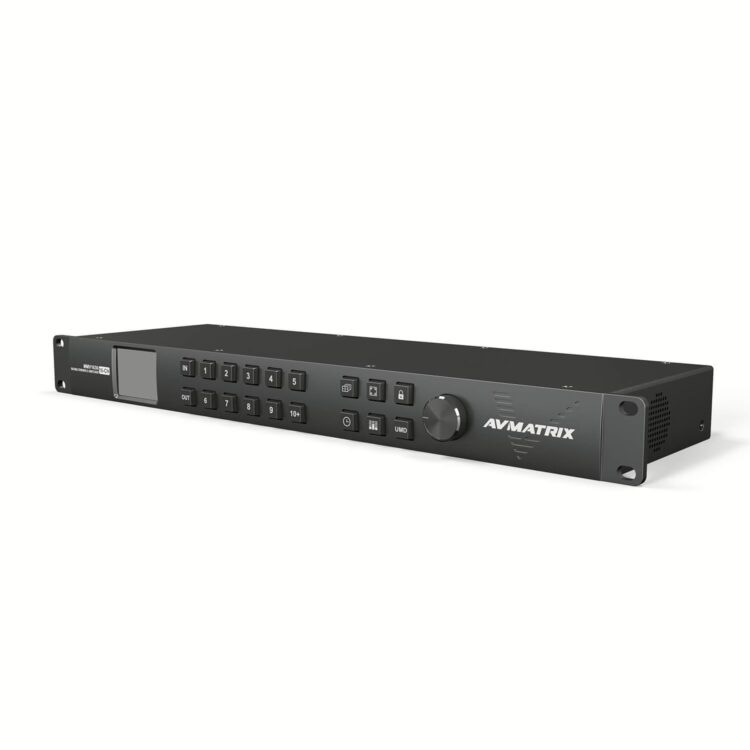

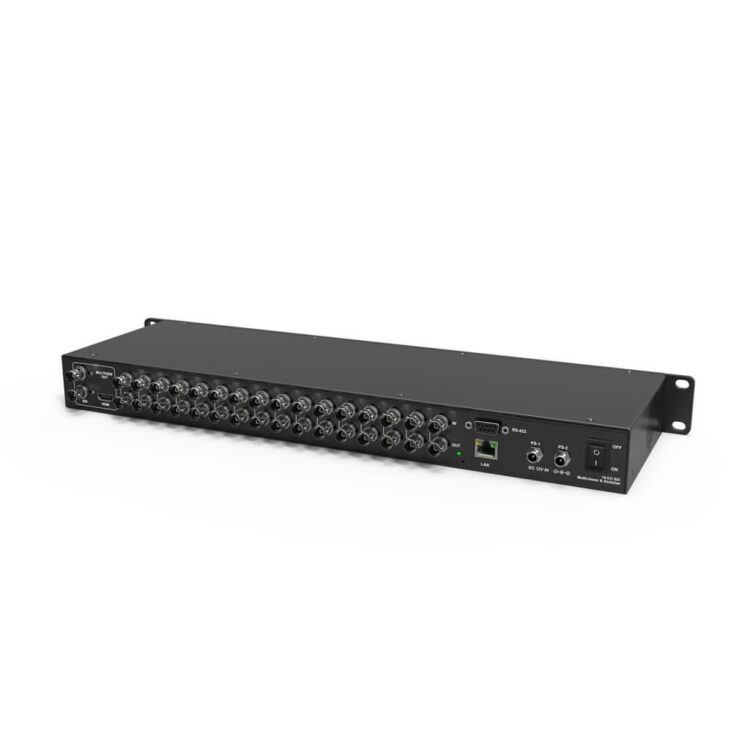

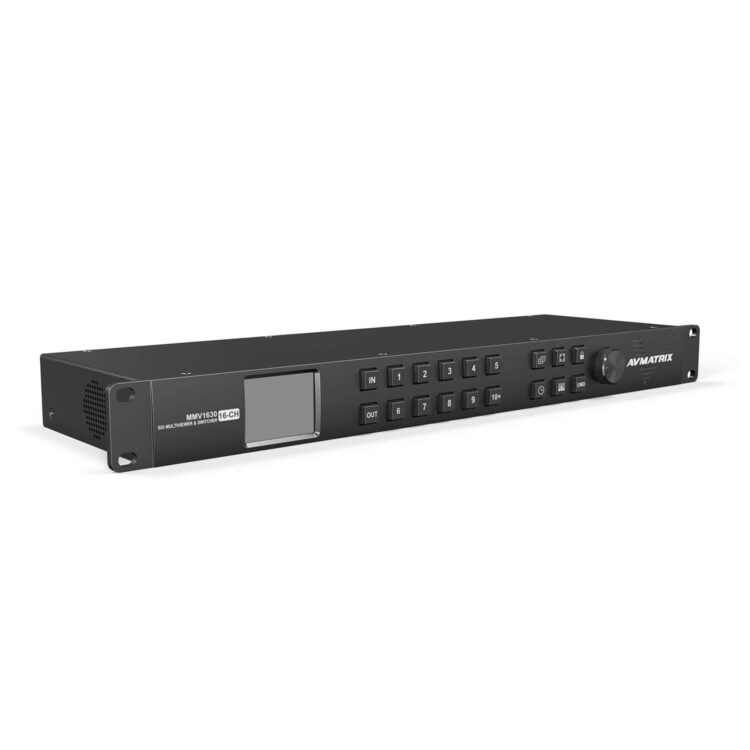

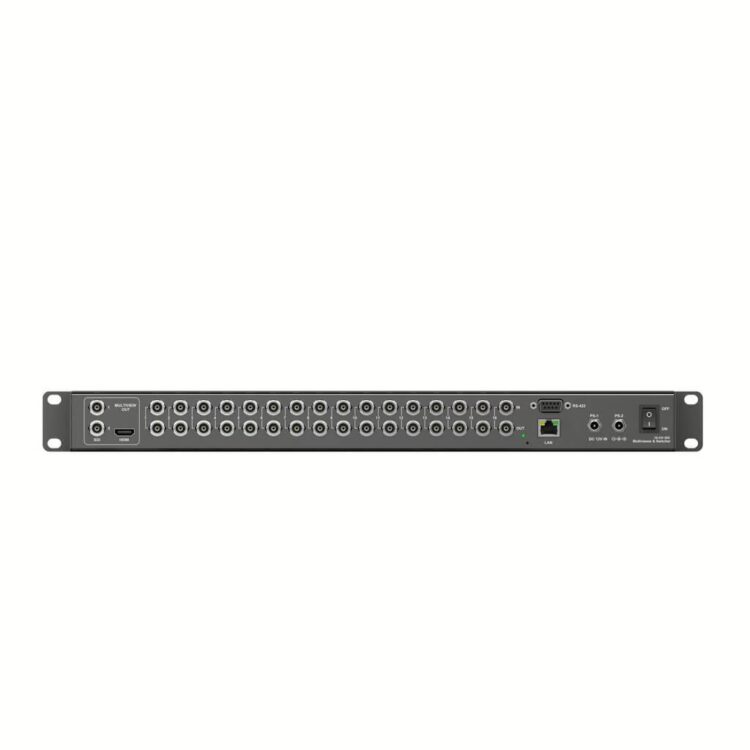

MMV1630 – 16CH SDI Multiviewer & Switcher

The MMV1630 – 16CH SDI Multiviewer & Switcher from AVMATRIX is built for professional broadcast, live production and streaming workflows, delivering reliable performance and clean signal handling.

Key features

• MMV1630 is the perfect solution for a large broadcast project. One machine supports two modes, 16 channel SDI multiviewer mode and 16×16 SDI matrix switcher. The input signal Automatically detects SD, HD and 3G-SDI. The video format of multiview output can be selected from total 9 fomats from 720p to 1080p. Besides, 20 standard layouts with 16/12/11/10/9/8/6/4 preset in this device. You can even SOLO any input signal in full screen through the shortcut key. MMV16310 also supports UMD, audio meter, signal status and time code overlay. All functions can be quickly controlled by the PC software or front panel button & knob.
